At least for the present the curtain track channel and suspension tubes will be cut to 7'10" (94") long. For 15 years we have sold this track in 8' (96") sticks but due to new FedEx/UPS rules on long packages we have had to reduce the length to fit within an 8' overall shipping tube.
Part # 01A 15054
Single Bay 11'10" x 9'10" Hospital Cubicle Curtain Track Kit
Due to request from our customers we are now offering our hospital cubicle curtain track in kit form. A lot of our customers did not want to spend the time to determine each piece and part they needed to do a simple installation. These curtain track kits contain all the parts needed for a standard installation. It can easily be cut down to fit smaller sizes or custom layouts. Mounting fasteners, screws, anchors and other attaching devices are not included Depending on your unique needs you may decide to order the parts individually or purchase a kit and add additional parts to it as needed.
Read our Cubicle Curtain Track Installation Tutorial by
You can also download this tutorial in PDF format by RIGHT CLICKING THIS LINK and saving it to your computer for printing or offline reference.
We also offer all the parts in this kit individually along with additional curtain track parts and accessories that can be used to build your own layout or customize one of our kits. Click Here to see the complete line of parts and accessories.

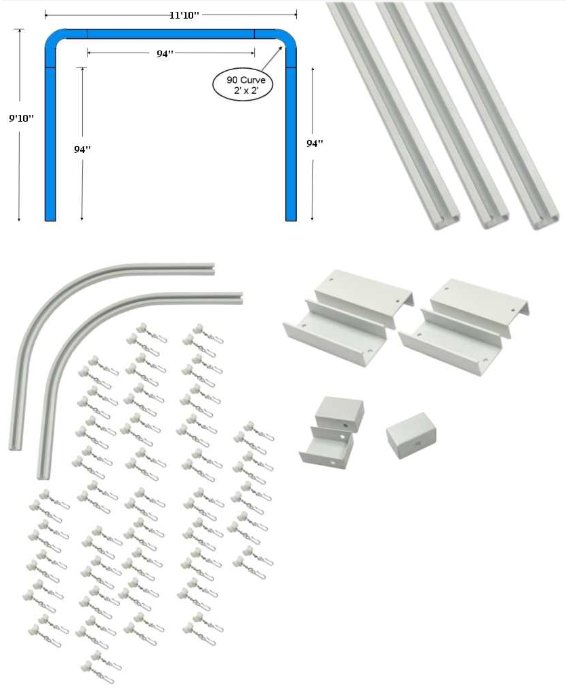

This kit contains all the parts needed to assemble this kit to a standard flat ceiling.
- 3 - 94" Sticks of Track
- 2 - 90 Degree Curves
- 4 - Splicing Clamps
- 80 - carrier rollers (your choice of standard or breakaway style)
- 2 - End Stops
- 1- Snap Out Fittings
- None - Joining Sleeves
- Choice of track & hardware colors - Aluminum or White
Does not include:
- Fasteners, screws or bolts
- Custom Fit - you must cut and drill the track and suspension tube (if included) to your specific needs if other than the standard 94" size.
Additional parts you may want/need to order:
- If you wish to order curtains from us you would need (3) 144" wide curtains (or equivalent width) curtains that we sell for this size kit. Click here to see our Curtain Selection. There is a 7 day lead time on standard size curtains and a 21 day lead time on custom size curtains.
- If you need to attach this track to a grid ceiling (acoustic tile) you will also need to order 13 of our Ceiling Clips to make attaching the track to the ceiling grid a breeze.
- If you need to suspend your track down from the ceiling you will also need 13 Ceiling Flanges, 13 Screw Inserts, 2 Wall Brackets and enough Suspension Tube to make 13 drops the length you want to suspend the track down. The suspension tube comes in 94" lengths, so if you wanted to suspend this track 23" down from the ceiling you would need to order (4) -94" suspension tube and cut it into (13) - 23" lengths.
- There are other accessories and hardware available for custom installations, see our complete line of track parts by CLICKING HERE.
