Part # 01A 15050
Quad Bay 41'4" x 9'10" Hospital Cubicle Curtain Track Kit
Due to request from our customers we are now offering our hospital cubicle curtain track in kit form. A lot of our customers did not want to spend the time to determine each piece and part they needed to do a simple installation. These curtain track kits contain all the parts needed for a standard installation. It can easily be cut down to fit smaller sizes or custom layouts. Mounting fasteners, screws, anchors and other attaching devices are not included Depending on your unique needs you may decide to order the parts individually or purchase a kit and add additional parts to it as needed.
Read our Cubicle Curtain Track Installation Tutorial by
You can also download this tutorial in PDF format by RIGHT CLICKING THIS LINK and saving it to your computer for printing or offline reference.
We also offer all the parts in this kit individually along with additional curtain track parts and accessories that can be used to build your own layout or customize one of our kits. Click Here to see the complete line of parts and accessories.

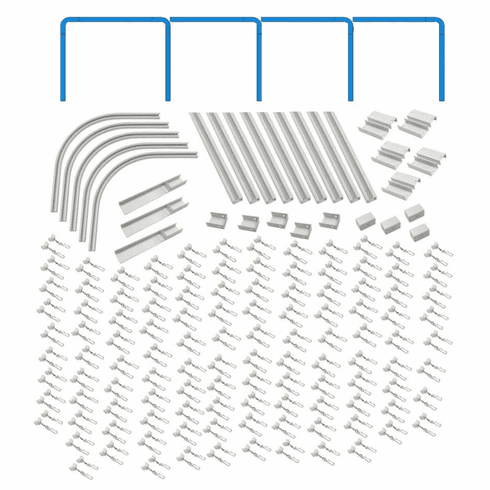

This kit contains all the parts needed to assemble this kit to a standard flat ceiling.
- 9 - 94" Sticks of Track
- 5 - 90 Degree Curves
- 10 - Splicing Clamps
- 230 - carrier rollers (your choice of standard or breakaway style)
- 5 - End Stops. End Stops come in your choice of standard metal end stops or nylon end stops with integrated snap out fittings.) The snap out fitting lets you easily change out broken roller hooks or add/subtract roller hooks as needed.

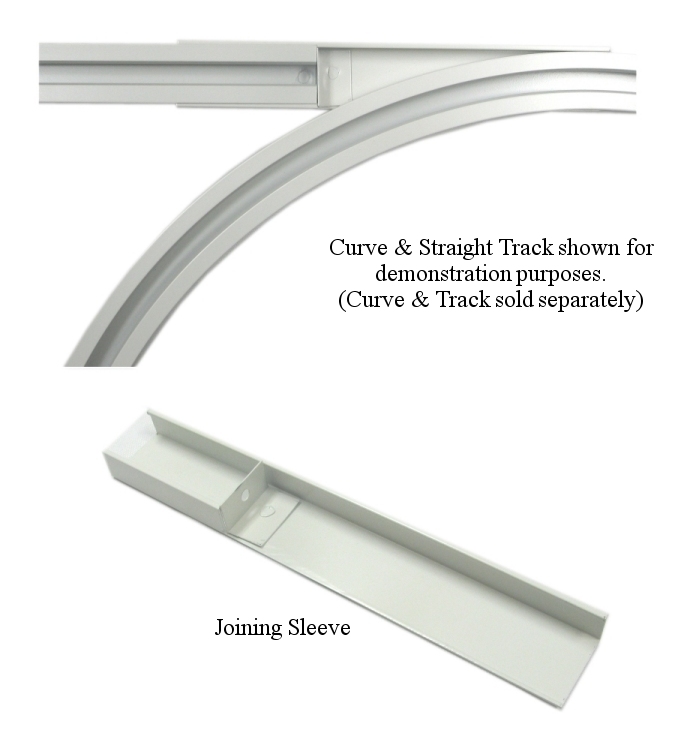

- 3 - Joining Sleeves
- Choice of track & hardware colors - Aluminum or White
Does not include:
- Fasteners, screws or bolts
- Custom Fit - you must cut and drill the track and suspension tube (if included) to your specific needs if other than the standard 94" size.
Additional parts you may want/need to order:
- If you wish to order curtains from us you would need (9) 144" wide curtains (or equivalent width) curtains that we sell for this size kit. Click here to see our Curtain Selection. There is a 7 day lead time on standard size curtains and a 21 day lead time on custom size curtains.
- If you need to attach this track to a grid ceiling (acoustic tile) you will also need to order 37 of our Ceiling Clips to make attaching the track to the ceiling grid a breeze.
- If you need to suspend your track down from the ceiling you will also need 37 Ceiling Flanges, 37 Screw Inserts, 5 Wall Brackets and enough Suspension Tube to make 37 drops the length you want to suspend the track down.
- There are other accessories and hardware available for custom installations, see our complete line of track parts by CLICKING HERE.
