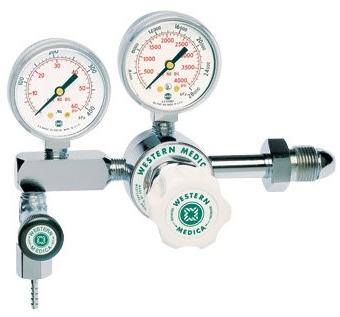

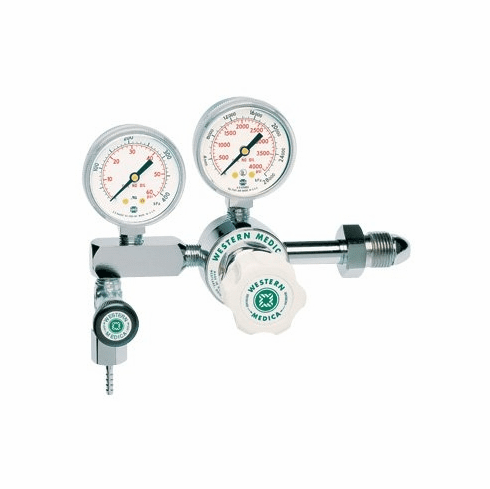

Cylinder Regulator, Clinical Instrumentation Regulator, 0-50 psi, Handtight
Nut and Nipple Connection
Part # A1 311-499-XXX
| Clinical Instrumentation
Regulator, 0-50psi, Handtight Nut & Nipple Connection |
|
Features
› Chrome-plated brass body with all brass
high pressure chamber
› Blood gas applications – adjusts to
accurate bubble rate with needle valve
› 2" diameter gauges
› Dual scale pressure gauge: psi and kPa
› Hose barb fitting for 1/8" ID hose
included
› Sintered filter for additional safety and
to extend regulator life
› 6 year limited warranty
|
Nut and Nipple (CGA)
|
Yoke (GCA)
|
Gas Assignment
|
|
280
|
880
|
Carbon Dioxide and Oxygen Mixture (CO2
under 7%)
|
|
280
|
890
|
Helium and Oxygen Mixture (He under 80.5%)
|
|
280
|
890
|
Nitrogen and Oxygen Mixture (O2 over
23.5%)
|
|
280
|
965
|
Nitrous Oxide and Oxygen Mixture (N2O
47.5% to 52.5% O2)
|
|
280
|
890
|
Xenon and Oxygen Mixture (O2 over 20%)
|
|
320
|
940
|
Carbon Dioxide
|
|
326
|
910
|
Nitrous Oxide
|
|
346
|
950
|
Medical Air
|
|
500
|
940
|
Carbon Dioxide and Oxygen Mixture (CO2
over 7%)
|
|
500
|
930
|
Helium and Oxygen Mixture (He over 80.5%)
|
|
500
|
973
|
Carbon Dioxide, Oxygen and Nitrogen
|
|
500
|
973
|
Lung Diffusion Mixtures
|
|
500
|
973
|
Nonflammable, Noncorrosive Diagnostic and Medically Related Gas
Mixtures
|
|
540
|
870
|
Oxygen
|
|
580
|
960
|
Nitrogen
|
|
580
|
930
|
Helium
|
|
Ordering Example:
Order by replacing X’s in model number with desired CGA number from the
Gas/Inlet Connections Chart. Example: 311-498-XXX converts to 311-498-320 for a
Carbon Dioxide regulator with a CGA-320 nut and nipple inlet connection.
|
|
